Keyboard

61 keys (with velocity)

Sound Generator

Parts

8

Tones

1,600 tones or greater
55 Drum kits or greater

Expansion

EXZ World Expansion Series
* The expansion are rewritable internal sound generator memory.
You can download data from the Roland Cloud and write it via a USB flash drive into the internal memory.
Maximum number of Expansions: 3
* Depends on size of Expansion titles

Sample Import

Audio file: WAV
File format: 44.1/48 kHz, 16/24 bits
Approximately 12 minutes of samples can be used in total.
Up to 3 minutes of stereo per sample (44.1 kHz, 16 bits)
* Share with Expansion titles

Preset Scene

1,600 scenes or greater

User Scene

256

Scene Remain

Yes

Favorite

100

Effects

Multi-Effects: 8 systems, 93 types
Part EQ: 8 systems
Drum Part COMP: 6 systems
Insertion Effect: 1 system, 93 types
Chorus: 10 types
Reverb: 8 types
System EQ: 1 system

Step Sequencer

Step Sequencer

8 Tracks (per scene)
Maximum 64 steps
Recording Method: Realtime recording, Step recording, TR-REC
Editing Method: Step edit

Audio File Player Section

Audio File Player Section

Audio file: WAV, AIFF
File format: 44.1/48 kHz, 8/16/24 bits
Speed/Pitch Control: Yes

Other

Rhythm pattern

Yes

Arpeggio

Yes

Chord Memory

Yes

Controllers

Pitch Bend/Modulation lever
Slider x 4
2 x 4 Pads

Display

Graphic LCD (128 x 64 dots with backlight)

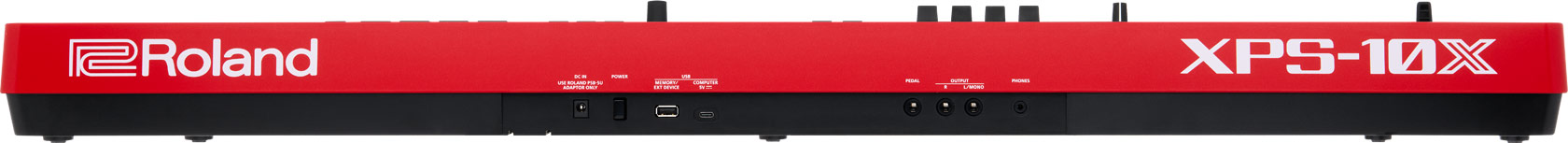

Connectors

PHONES jack: Stereo miniature phone type
OUTPUT jacks (L/MONO, R): 1/4-inch phone type
PEDAL jack
USB MEMORY/EXT DEVICE port: Type-A (Storage, MIDI)
USB COMPUTER port: USB Type-C(R) (Class Compliant for Audio and MIDI/ Roland driver for Audio and MIDI)

External Memory

USB flash drive (sold separately)

Power Supply

AC Adaptor
USB bus power supply (USB Type-C(R) port)
* External power supply from a USB Type-A port isn't available.

Current draw

500 mA (AC adaptor)
1,400 mA (USB bus power supply)

Power consumption when in OFF mode (when the power automatically turns off)

0.2 W

Accessories

Startup Guide
Leaflet “USING THE UNIT SAFELY”
AC adaptor (PSB-5U)
Power cord

Options (sold separately)

Keyboard Stand: KS-11Z, KS-13
Pedal Switch: DP-2, DP-10
Expression Pedal: EV-5

Size and Weight

Width

1,002 mm
39-1/2 inches

Depth

268 mm
10-9/16 inches

Height

93 mm
3-11/16 inches

Weight

4.6 kg
10 lbs 3 oz
