Acoustic
High tone quality capable of reproducing subtle nuances of acoustic instruments
Intelligent
High-performance DSP effects and EQ driven by a powerful new processor
Xpression
Wide range of built-in tones with unique and powerful expression capabilities

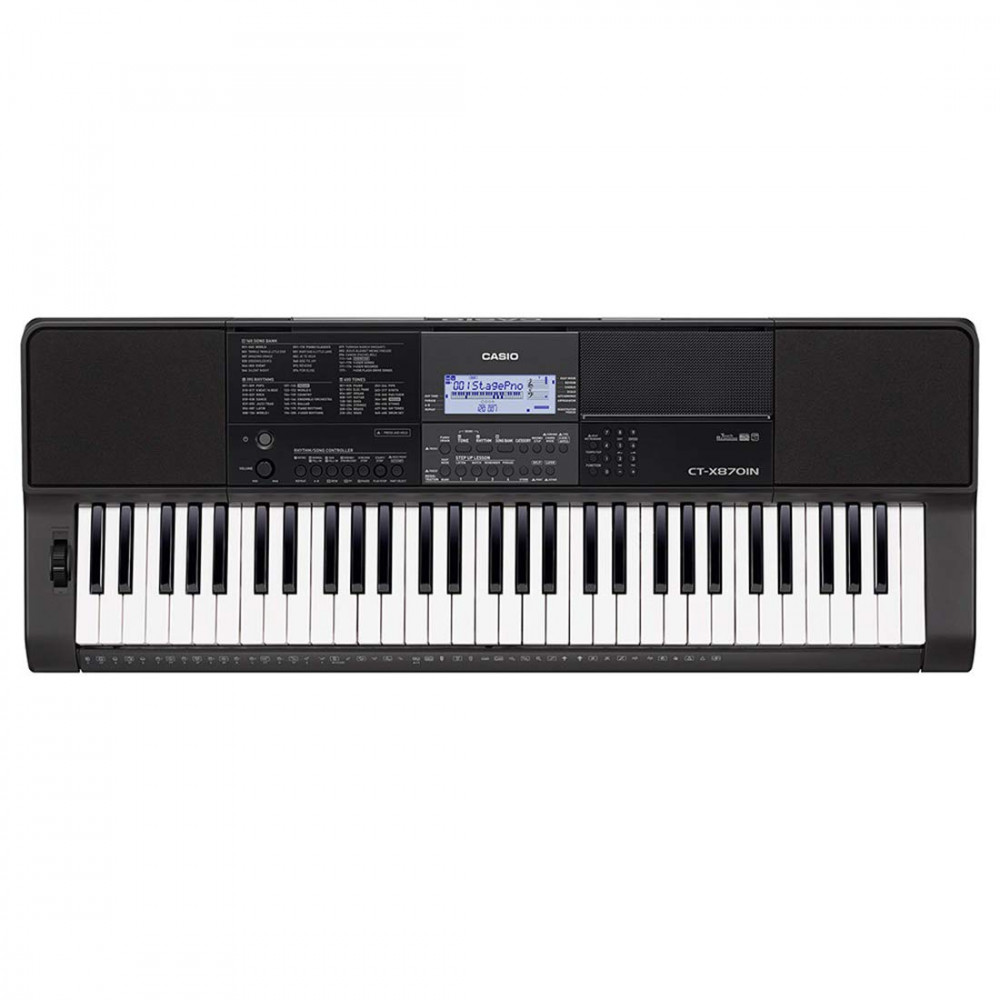

61 Piano Style Keys
Maximum Polyphony 48
Touch Response : 2 sensitivity levels
600 builtin tones (21 Indian)21 lndlan tones, stereo sampled grand piano tones, and more for a total of 600 high-quality tones
195 Rhythms (26 Indian)26 lndian rhythms and more for a total of 195 versatile rhythms
Layer Mode Lower x 1' Upper x 2
4 Pads X 8 Banks:32 Registration Memory
6-Tracks Song Sequencer
57 SFX TonesHigh Quality SFX including Animal Sounds, Nature Sounds, Shankh & Temple Bells and much more.
Sustain Pedal Connectivity
Pitch Bend WheelRotate the wheel to slide the pitch of the sound being output upwards or downwards
USB Flash MemoryFor storage and expansion
160 Song Bank Tunes160 Song Bank tunes Includan Exercise phrases
Lesson Function
Audio-in with Center Cancel
General MIDI
Amp Output: 2.5W + 2.5WSpecifications:
| Keyboard |
61 standard size keys
Touch Response: Sensitivity 3 types, Off |
|---|---|
| Maximum Polyphony |
48 notes (24 for certain tones) |
| Tones |
Built-in Tones: 600 (21 Indian)
Functions: Layer, Split, Piano/Organ button |
| Reverb |
1 to 20, Off |
| Chorus |
1 to 10, Tone |
| Metronome |
Beats per Measure: 0 to 9
Tempo Range: 20 to 255 |
| Song Bank |
Demo Song: 1
Built-in Songs: 160
User Songs: 10*
User-recorded songs: 6*
* Maximum capacity per song: Approximately 320 kilobytes |
| Step Up Lesson |
Lessons: 3 (Listen, Watch, Remember), Easy Mode
Lesson Part: L, R, LR
Functions: Repeat, Voice Fingering Guide, Note Guide, Performance Evaluation |
| Auto Accompaniment |
Built-in Rhythms: 195 (26 Indian)
User Rhythms: 10*
* Maximum capacity per rhythm: Approximately 64 kilobytes |
| Chord Book Function |
Chord guide |
| Registration |
32 (4 setups x 8 banks) |
| Recorder |
Real-time recording, playback
Keyboard Play: 5 songs, 6 tracks
Playing Along with a Built-in Songs: 1 song (L, R, LR)
Memory Capacity: Approximately 40,000 notes (1 song) |
| Other Functions |
Transpose: 1 octaves (-12 to +12 semitones)
Octave Shift: Upper 1/Upper 2/Lower, 3 octaves
Tuning: A4 = 415.5 to 465.9 Hz (Initial Default: 440.0 Hz)
Preset Scales: 17
Music Preset: 310
One Touch Preset: 195
Auto Harmonize: 12 types
Arpeggiator: 100 types
SFX: 57 |
| MIDI |
16 multi-timbre received, GM Level 1 standard |
| Musical Information Function |
Tone, Rhythm, Song Bank numbers and names, staff notation, fingering, pedal operation, tempo, measure and beat number, chord name, etc. |
| Pitch Bend Wheel |
Pitch Bend Range 0 to 24 semitones |
| USB Flash Drive |
SMF direct playback, data storage, data loading, data deleting, USB flash drive format |
| Inputs/Outputs |
USB flash drive port: TYPE A
USB port: TYPE B
PEDAL jack: Standard jack (sustain, sostenuto, soft, rhythm)
Phones/Output jack: Stereo standard jack/Output Impedance 167?, Output Voltage 4.5V (RMS) MAX
Audio In jack: Stereo mini jack/Input Impedance 10k?, Input Sensitivity 200mV |
| Power Jack |
DC 9.5V |
| Power Supply |
2-way
Batteries: 6 AA-size alkaline batteries
Battery Life: Approximately 3 hours continuous operation on alkaline batteries
AC Adaptor: LAD-6
Auto Power Off: Approximately 30 minutes after last operation; Can be disabled. |
| Speakers |
12cm x 2 (Output: 2.5W + 2.5W) |
| Power Consumption |
7.5 W |
| Dimensions |
W 94.8 x D 35.0 x H 10.9 cm |
| Weight |
Approximately 4.4 kg (without batteries) |
| Included Accessories |
Music stand, LAD-6 Adaptor |
